SIGNAGE MONITOR SERIES

Out stock

Category: INFINITY

Description

Specifications

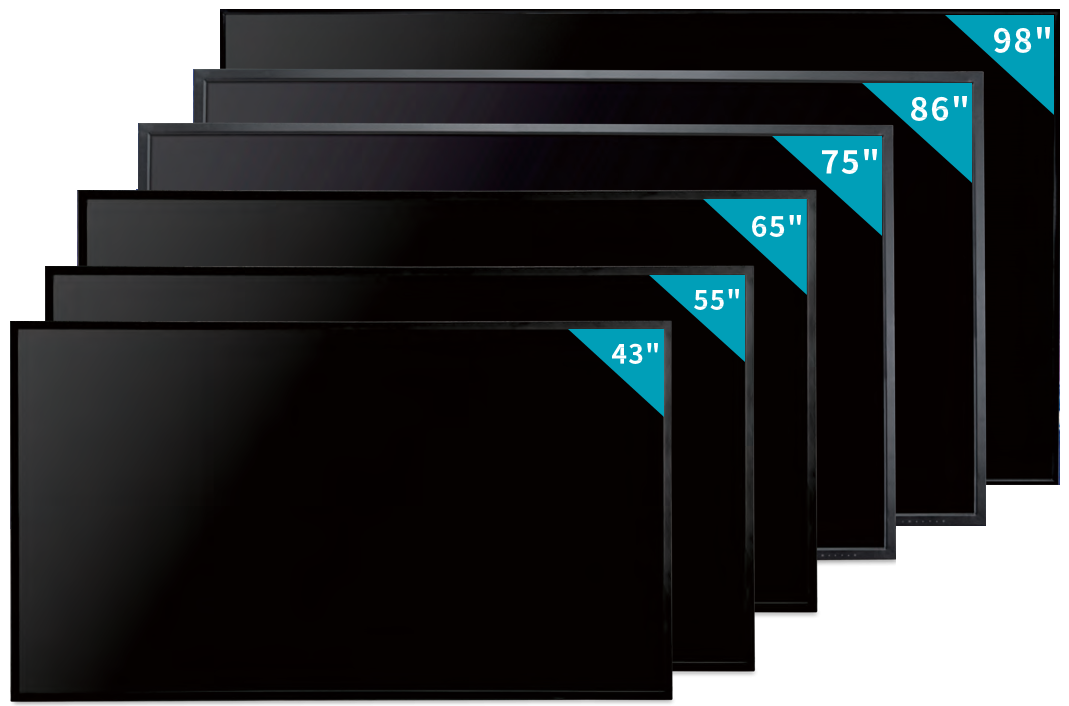

Panel Size	43″	55″	65″	75″	86″	98″
Backlight Type	D-LED	D-LED	D-LED	D-LED	D-LED	D-LED
Luminance	350cd/㎡(typ.)	350cd/㎡(typ.)	400cd/㎡(typ.)	450cd/㎡(typ.)	450cd/㎡(typ.)	500cd/㎡(typ.)
Optimum Resolution	3840×2160@60Hz	3840×2160@60Hz	3840×2160@60Hz	3840×2160@60Hz	3840×2160@60Hz	3840×2160@60Hz
Contrast Ratio	1200:1(typ.)	1200:1(typ.)	1200:1(typ.)	1200:1(typ.)	1200:1(typ.)	1200:1(typ.)
Response Time	8ms(typ.)	8ms(typ.)	8ms(typ.)	8ms(typ.)	8ms(typ.)	8ms(typ.)
Color Depth	1.07B	1.07B	1.07B	1.07B	1.07B	1.07B
Color Gamut	72%NTSC(typ.)	72%NTSC(typ.)	72%NTSC(typ.)	72%NTSC(typ.)	68%NTSC(typ.)	70%NTSC(typ.)
Viewing Angle	178°(H/V)	178°(H/V)	178°(H/V)	178°(H/V)	178°(H/V)	178°(H/V)
Power Consumption (W)	≤85W(Without OPS)	≤140W(Without OPS)	≤170W(Without OPS)	≤300W(Without OPS)	≤380W(Without OPS)	≤420W(Without OPS)
Standby Power Consumption (W)	<0.5W	<0.5W	<0.5W	<0.5W	<0.5W	<0.5W
Operating Voltage	100-240V~ 50/60Hz	100-240V~ 50/60Hz	100-240V~ 50/60Hz	100-240V~ 50/60Hz	100-240V~ 50/60Hz	100-240V~ 50/60Hz
Bare Dimension (mm) (W×D×H)	969.9×84.6×558.3	1243.2×69.6×714	1476.7×79.8×851.7	1692.5×79.6×970.7	1937.8×79.6×1108.8	2204.85×107.1×1260.35
Packing Dimension (mm)	1070x153x663	1364x154x824	1600x220x1010	1880x245x1125	2125x275x1275	2525x435x1750
Bezel Width (mm) (U/D/L/R)	13/13/13/13	13.9/13.9/13.9/13.9	23.1/23.1/23.1/23.1	19.4/19.4/19.4/19.4	19.4/19.4/19.4/19.4	21.5/21.5/21.5/21.5
